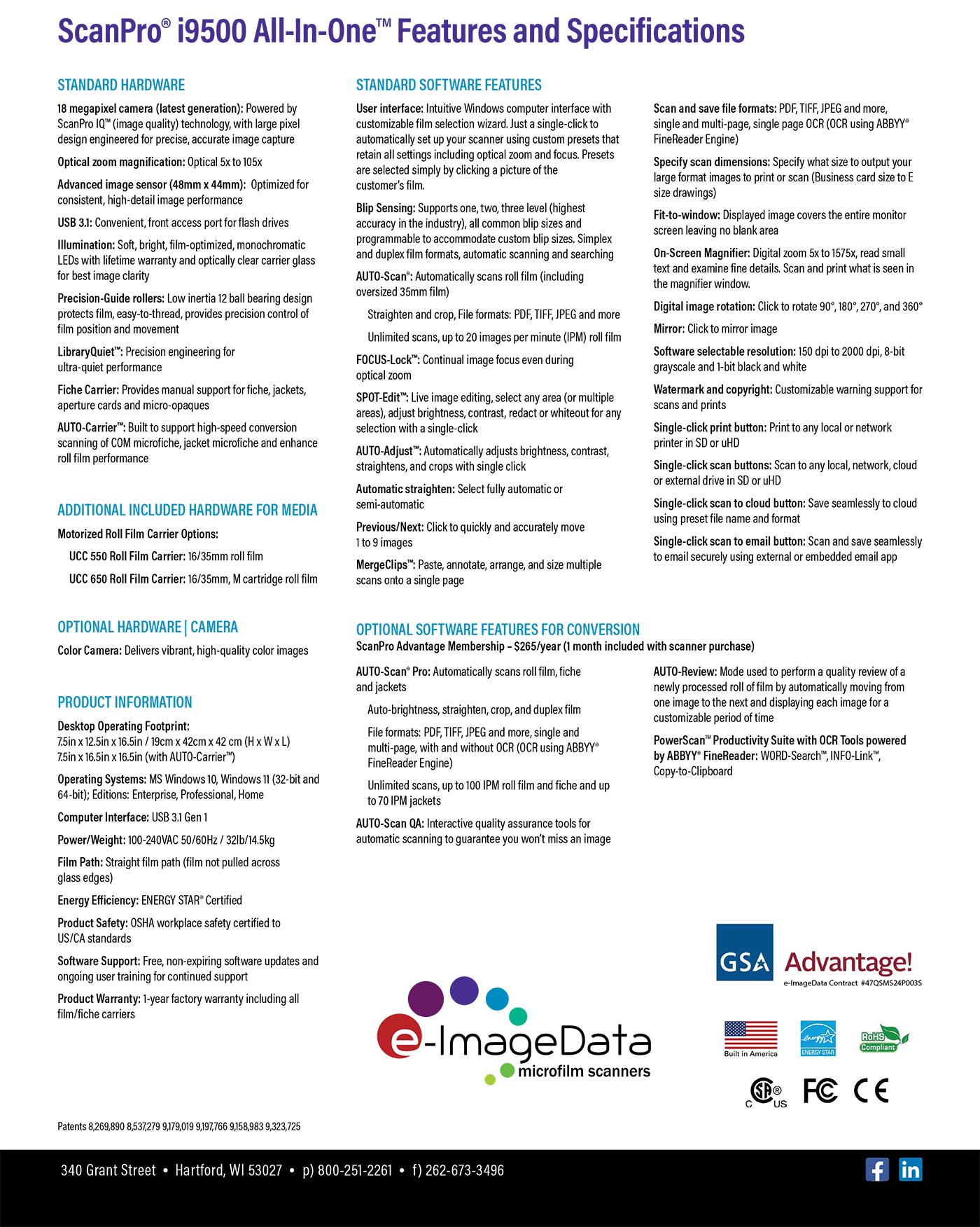

| ScanPro® i9500 All-In-One Specifications |
| Hardware |
| 26 Megapixel Camera: New high-performance camera, best optical image resolution in the industry, (6.6 MP image sensor x 4) with integrated pixel-shifting technology, largest pixels in the industry, over 7 times larger than the nearest competitor
|
| Optical zoom magnification: 5x to 105x |
| Large image capture: 35mm x 48mm |
| Camera Orientation: Portrait and
landscape selectable providing best image clarity for both portrait and landscape
images
|
| USB3/USB2/USB1: Convenient, front access port for flash drives |
| Image rotation: Optical
straightening of images for best image clarity
|
| Illumination: Soft,
bright, film-optimized, monochromatic LEDs with lifetime warranty and optically
clear carrier glass for best image clarity
|
| Precision-Guide rollers:
Low inertia 12 ball bearing design protects film, easy-to-thread, provides precision control of film position and movement
|
| Available Carriers and Media |
| AUTO-Carrier™: Automatic scanning support for fiche, jackets, micro-opaques, also enhances roll film performance
|
| UC 550: 16/35 combination motorized roll film with and
without blips, fiche, jackets, aperture cards, and micro-opaques
|
| UC 650: 16/35/35M Cartridge combination motorized roll film
with and without blips, fiche, jackets, aperture cards, and micro- opaques
|
| Standard Software Features |
| User Interface: Intuitive Windows computer interface with customizable film selection wizard. Just a single-click to automatically set up your scanner using custom presets that retain all settings including optical zoom and focus. Presets are selected by simply clicking a picture of the customer’s film. |
| Reads “Blips” for indexed searching of all film types: The only solution to handle all blipped film collections including Kodak, Canon, Minolta, 3M, AGFA or custom formatted film regardless of brand.- one, two, and three level image marks for use with simplex, duplex, and duo film. |
| AUTO-Scan™: Automatically scans
roll film
b (including oversized 35mm film), fichec and jacketsc |
| Straighten and crop |
| File formats: PDF, TIFF, JPEG and more |
| Unlimited scans, up to 20 images per minute
(IPM) roll film
b, fichec and jacketsc |
| FOCUS-Lock™: Continual image focus even during optical zoom |
| Fit-to-window: Displayed image covers the entire monitor screen leaving no blank area |
| Magnifier: Digital zoom 5x to 1575x,
read small text and examine fine details. Scan and print what is seen in the magnifier
window
|
| Digital image rotation: Click to rotate 90°,
180°, 270°, and 360°
|
| Mirror: Click to mirror
|
| SPOT-Edit™: Live image editing, select any area (or multiple areas), adjust brightness,
contrast, redact or whiteout for any selection with a single-click
|
| AUTO-Adjust™: Automatically adjusts brightness, contrast, straightens, and crops with single click |
| Automatic Straighten Select fully automatic, or semi-automatic |
| Previous/Next: Click to quickly and accurately move 1 to 9 images |
| MergeClips™: Paste, annotate, arrange, and size multiple scans onto a single page |
| Software selectable resolution: 150 dpi to 2000 dpi, 8-bit grayscale, 1-bit black and white |
| Scan and save file formats: PDF, TIFF, JPEG and more, single and multi-page, single page OCR (OCR using ABBYY Fine Reader Engine) |
| Specify scan dimensions: Explicitly specify the size of the printed or scanned document image |
| Watermark and copyright: Customizable warning support for scans and prints |
| Three single-click print button: Print seamlessly using preset printer and to specific printer paper drawer with the required paper size |
| Four single-click scan buttons: Scan and save seamlessly using preset file name, format, and path |
| Single-click scan to Cloud button: Scan and save seamlessly to cloud using preset file name and format |
| Single-click scan to email button: Scan and save seamlessly to email securely using external or embedded email app |
| Features added by ScanPro Advantage
Membership (First 6 months is free, $249/year thereafter)
|
| AUTO-Scan™ Pro: Automatically scans roll film b(including oversized 35mm film), fichec and jacketsc |
| Auto-brightness, straighten, crop, and duplex film |
| File formats: PDF, TIFF, JPEG and more, single and multi-page, with and without OCR (OCR using ABBYY Fine Reader Engine) |
| Unlimited scans, up to 100 IPM roll film bc and fichec, and up to 70 IPM jacketsc |
| Automatic file naming using blip address |
| AUTO-Scan QA: Interactive quality assurance tools for automatic scanning to guarantee you won’t miss an image |
| AUTO-Review: Mode used to perform a quality review of a newly processed roll of film by automatically moving from one image to the next and displaying each image for a customizable period of time |
| PowerScan Productivity Suite (PPS): WORD-Search™, INFO-Link™, Copy-to-Clipboard (OCR using ABBYY® Fine Reader Engine) |
| Scan and save file formats: PDF, TIFF, JPEG and more, single and multi-page, single and multi-page OCR (OCR using ABBYY Fine Reader Engine) |
| ScanPro i9500 All-In-One
Product Information
|
|
| Desktop All-In-One, Smallest
Operating Footprint
|
7.5in x 16.5in x 16.5in / 19cm x 42cm x 42 cm (H x W x L) |
| Operating Systems | Versions, 32 and 64 bit: Win 7 to Win 10; Editions: Enterprise, Professional, Home |
| Computer Interface |
USB 3.1 |
| Power
and Weight
|
100-240VAC 50/60Hz, 32lb / 14.5kg |
| Film Path | Straight film path (film not pulled across glass edges) and low inertia 12 ball bearing design protects film |
| Energy Efficiency | ENERGY STAR® Certified |
| Product Safety | OSHA workplace safety certified to US/CA standards |
| Warranty | 3-year factory warranty (includes carriers) |
b–Requires Roll Film carrier c–Requires AUTO-Carrier Patents 8,269,890 8,537,279 9,179,019 9,197,766 9,158,983 9,323,725 © 1/2022 e-ImageData Corp.
